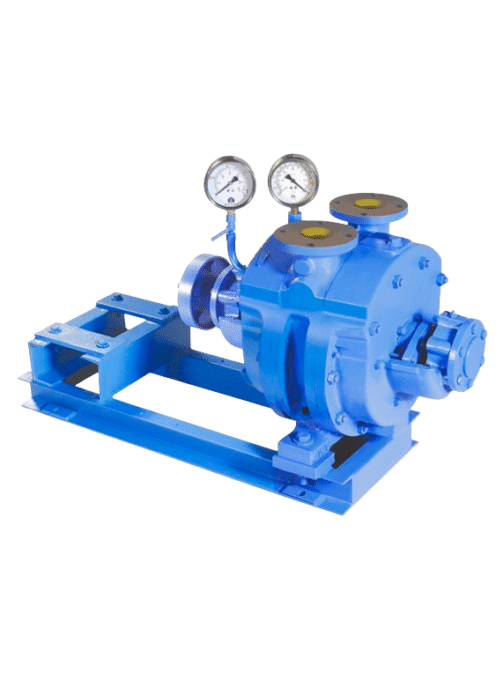

10 hp water ring vacuum pump
₹ 21,500
Boost efficiency with the 10 HP Water Ring Vacuum Pump. Designed for industrial use, it delivers powerful suction, energy savings, and long-lasting durability. Perfect for heavy-duty operations across multiple industries.
- Model Type: JDWV-5
- Motor Power: 10 HP
- Speed: 1440 RPM
- Suction Capacity: 220 m³/hr
- Vacuum Range: Up to 710 mmHg (approx. 94% vacuum)
- Water Consumption: 20 L/min (approx.)
- Construction Material: Cast Iron / Stainless Steel (as per requirement)
- Cooling System: Water circulation based
- Operation Mode: Continuous Duty
- Applications: Industrial, Chemical, Pharma, Food, Paper, Textile
Description
Powerful Performance with 10 HP Vacuum Pump Efficiency
Experience unmatched suction power with the 10 HP Water Ring Vacuum Pump, designed for high-demand industrial operations. Its robust 10 HP motor delivers reliable performance, making it ideal for applications that require consistent vacuum pressure. From chemical processing plants to large-scale manufacturing units, this pump ensures efficiency, durability, and superior energy utilization. Its water ring technology reduces wear and tear, guaranteeing longer service life and reduced downtime for your business.
Versatile Applications Across Industries
The 10 HP Water Ring Vacuum Pump is built to adapt to a wide range of industrial processes. Whether it’s vacuum filtration, distillation, evaporation, or material handling, this pump provides the dependable suction power needed. Industries like pharmaceuticals, food processing, textiles, power generation, and petrochemicals rely on this pump for continuous and smooth operation. Its water-based sealing mechanism ensures clean, oil-free operation, making it a sustainable and low-maintenance solution.
Reliable Design & Low Maintenance Advantage
Engineered with precision, this pump features a rugged cast-iron body and corrosion-resistant components that withstand the toughest conditions. Its water-lubricated system eliminates the risk of oil contamination, ensuring a cleaner working environment. With fewer moving parts, the 10 HP Water Ring Vacuum Pump requires minimal maintenance, lowering operational costs. Easy installation and user-friendly design make it a cost-effective investment for companies looking for efficiency and reliability.
MOC of Pump
- Type: A (C.I. Construction)
- Type: C (All Internal Parts in SS 304 / SS 316)
- Type: SS (Complete SS 304 / SS 316)
Features
- Simple Construction
- High Capacity
- Trouble-Free Operation
- Low Maintenance
Applications
- Chemical Industries
- Pharmaceuticals
- Sterilizing
- Distillation, Evaporation & drying
- Filtration Processes
- Dehydrates
- Conveying Sucking
| Type JDWV | Speed rpm | suction capacity | Recommended motor hp | Water consumption ltr/min. |
|---|---|---|---|---|
| 1 | 2850 | 50 | 3 | 7 |
| 2 | 2850 | 80 | 5 | 10 |
| 3 | 2850 | 120 | 7.5 | 14 |
| 4 | 1440 | 160 | 7.5 | 15 |
| 5 | 1440 | 220 | 10 | 20 |
| 6 | 1440 | 330 | 15 | 30 |
| 7 | 1440 | 440 | 20 | 40 |
| 8 | 980 | 720 | 30 | 60 |
| 9 | 980 | 845 | 35 | 80 |
| 10 | 980 | 1080 | 40 | 100 |
| 11 | 725 | 1500 | 65 | 150 |
| 12 | 725 | 2025 | 90 | 200 |
