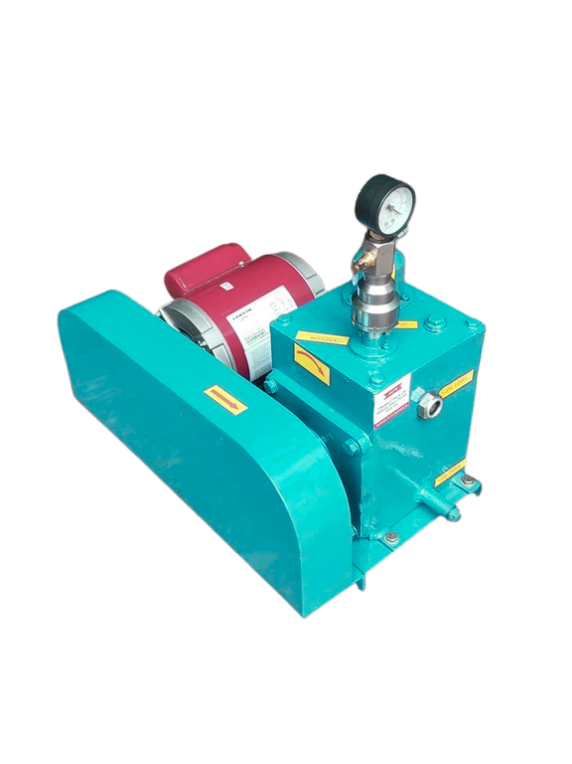

40 M3hr Oil Lubricated Vacuum Pump
₹10,600
Discover the powerful 40 M³/Hr Oil Lubricated Vacuum Pump by JD Vacuum Service. Engineered for durability, low noise, and high vacuum performance—ideal for industrial and laboratory applications. Upgrade to reliable, energy-efficient vacuum technology today.
- Pump capacity: 40 M³/Hr
- Type: Single-stage / Oil-lubricated rotary vane
- Ultimate Vacuum: Up to 0.05 mbar
- Motor Power: 1.5 HP / 1.1 kW
- Cooling Method: Air-cooled
- Lubrication: Forced oil circulation system
- Noise Level: < 65 dB(A)
- Oil Capacity: 1.5 – 2 Litres
- Operating Temperature Range: 10°C to 50°C
- Inlet/Outlet Port: Standard threaded connections
- Body Material: Heavy-duty cast iron
- Mounting: Base-mounted with anti-vibration pads
Description
40 M³/Hr Oil Lubricated Vacuum Pump – Premium Performance for Demanding Applications
Experience powerful and consistent vacuum generation with the 40 M³/Hr Oil Lubricated Vacuum Pump by JD Vacuum Service. Designed for industries that demand stability, accuracy, and reliability, this pump delivers high pumping speed, deep vacuum levels, and long-lasting performance.
Its oil-sealed mechanism ensures smooth operation while minimizing friction. This results in improved efficiency and extended pump life. Moreover, this pump is ideal for laboratory setups, chemical processing, vacuum packaging, filtration, and other high-demand operations where precision is essential.
Durable Build & Advanced Engineering for Continuous Operation
Engineered with robust materials and a smart mechanical layout, this vacuum pump guarantees unmatched durability and consistent output—even under continuous cycles. Its heavy-duty cast iron body, high-grade rotor, and precision-machined components reduce wear and tear. This ensures superior dependability.
Additionally, the efficient oil circulation system provides excellent heat dissipation. As a result, it lowers maintenance requirements and boosts operating life. Users enjoy reduced downtime and exceptional performance in rigorous environments.
Energy-Efficient, Low Noise & User-Friendly Operation
Designed with the user in mind, the 40 M³/Hr vacuum pump offers low noise levels, minimal vibration, and energy-efficient functioning. This makes it a perfect choice for both industrial workstations and laboratories.
Furthermore, maintenance is simple and quick due to its easy-access oil fill and drain ports. Replaceable filters and streamlined parts layout also contribute. This pump not only enhances productivity but also supports a cleaner, quieter, and more efficient working environment.
SINGLE STAGE
| Model No. | Max Vacuum | Approx Oil Filling Ltrs. | Free Air Displacement Lt./min, c.f.m, m3/hr | Drive Motor | ||||
|---|---|---|---|---|---|---|---|---|
| JDO-50 I | 0.05 mbar | 2 | 50 LPM | 1.8 C.F.M. | 3 M3/HR | 0.25 | ||
| JDO-100 I | 0.05 mbar | 2 | 100 LPM | 3.5 C.F.M. | 6 M3/HR | 0.25 | ||
| JDO-150 I | 0.05 mbar | 3 | 150 LPM | 5.3 C.F.M. | 9 M3/HR | 0.50 | ||
| JDO-300 I | 0.05 mbar | 5 | 300 LPM | 10.6 C.F.M. | 18 M3/HR | 1.00 | ||
| JDO-500 I | 0.05 mbar | 9 | 500 LPM | 17.6 C.F.M. | 30 M3/HR | 1.50 | ||
| JDO-750 I | 0.05 mbar | 10 | 750 LPM | 26.5 C.F.M. | 45 M3/HR | 2.00 | ||
| JDO-1000 I | 0.05 mbar | 10 | 1000 LPM | 35.3 C.F.M. | 60 M3/HR | 2.00 | ||
| JDO-1500 I | 0.05 mbar | 25 | 1500 LPM | 53.0 C.F.M. | 90 M3/HR | 3.00 | ||
| JDO-2000 I | 0.05 mbar | 25 | 2000 LPM | 70.6 C.F.M. | 120 M3/HR | 3.00 | ||
| JDO-3000 I | 0.05 mbar | 32 | 3000 LPM | 106.0 C.F.M. | 180 M3/HR | 5.00 | ||
| JDO-5000 I | 0.05 mbar | 36 | 5000 LPM | 178.5 C.F.M. | 300 M3/HR | 7.50 | ||
| JDO-7500 I | 0.05 mbar | 60 | 7500 LPM | 265 C.F.M. | 450 M3/HR | 10.00 | ||
| JDO-10000 I | 0.05 mbar | 66 | 10000 LPM | 353 C.F.M. | 600 M3/HR | 15.00 | ||
| JDO-15000 I | 0.05 mbar | 68 | 15000 LPM | 530 C.F.M. | 900 M3/HR | 22.00 | ||
| JDO-20000 I | 0.05 mbar | 70 | 20000 LPM | 710 C.F.M. | 1200 M3/HR | 25.00 | ||
DOUBLE STAGE
| Model No. | max vacuum | approx oil filling ltrs. | free air displacement Lt./min, c.f.m, m3/hr | drive motor | ||||
|---|---|---|---|---|---|---|---|---|
| JDO-50 II | 0.005 mbar | 2 | 50 LPM | 1.8 C.F.M. | 3 M3/HR | 0.25 | ||
| JDO-100 II | 0.005 mbar | 3 | 100 LPM | 3.5 C.F.M. | 6 M3/HR | 0.50 | ||
| JDO-150 II | 0.005 mbar | 4 | 150 LPM | 5.3 C.F.M. | 9 M3/HR | 1.00 | ||
| JDO-300 II | 0.005 mbar | 7 | 300 LPM | 10.6 C.F.M. | 18 M3/HR | 1.50 | ||
| JDO-500 II | 0.005 mbar | 12 | 500 LPM | 17.6 C.F.M. | 30 M3/HR | 2.00 | ||
| JDO-750 II | 0.005 mbar | 14 | 750 LPM | 26.5 C.F.M. | 45 M3/HR | 3.00 | ||
| JDO-1000 II | 0.005 mbar | 15 | 1000 LPM | 35.3 C.F.M. | 60 M3/HR | 3.00 | ||
| JDO-1500 II | 0.005 mbar | 30 | 1500 LPM | 53.0 C.F.M. | 90 M3/HR | 5.00 | ||
| JDO-2000 II | 0.005 mbar | 35 | 2000 LPM | 70.6 C.F.M. | 120 M3/HR | 5.00 | ||
| JDO-3000 II | 0.005 mbar | 40 | 3000 LPM | 106.0 C.F.M. | 180 M3/HR | 7.00 | ||
| JDO-5000 II | 0.005 mbar | 42 | 5000 LPM | 178.5 C.F.M. | 300 M3/HR | 10.00 | ||
| JDO-7500 II | 0.005 mbar | 65 | 7500 LPM | 265 C.F.M. | 450 M3/HR | 15.00 | ||
| JDO-10000 II | 0.005 mbar | 75 | 10000 LPM | 353 C.F.M. | 600 M3/HR | 20.00 | ||
| JDO-15000 II | 0.005 mbar | 80 | 15000 LPM | 530 C.F.M. | 900 M3/HR | 25.00 | ||
| JDO-20000 II | 0.005 mbar | 80 | 20000 LPM | 710 C.F.M. | 1200 M3/HR | 30.00 | ||
Field Application
- Laboratory Application of Chemical Plant.
- R&D Centre Vacuum Impregnation, Packing
- Vacuum Drying, Forming, Coating
- Lamp Industries, Leak Detection,
- Cryogenics, Distillation.Re-refining of oil
Capacity
- Max. Capacity: 50 LPM to 20,000 LPM (3.06 M3/hr.to 1204 M3/hr.)
- Max. Vacuum: Single Stage: 0.05 mm of Hg.
- Max. Vacuum: Two Stage: 0.005 mm of Hg.
- Recommend Motor: 0.25 HP to 25 HP, 1450 RPM Pump Speed: 500 RPM
Salient Features
- Robust Construction
- Compact, well-designed, and low-weight model
- Maximum Efficiency
- Trouble-free operation
- R&Easy and fast arrangement to change oil
- Thoroughly tested for seamless operation
- Easily handle dust-laden gases
- Built-in anti suck facility to prevent back of oil
