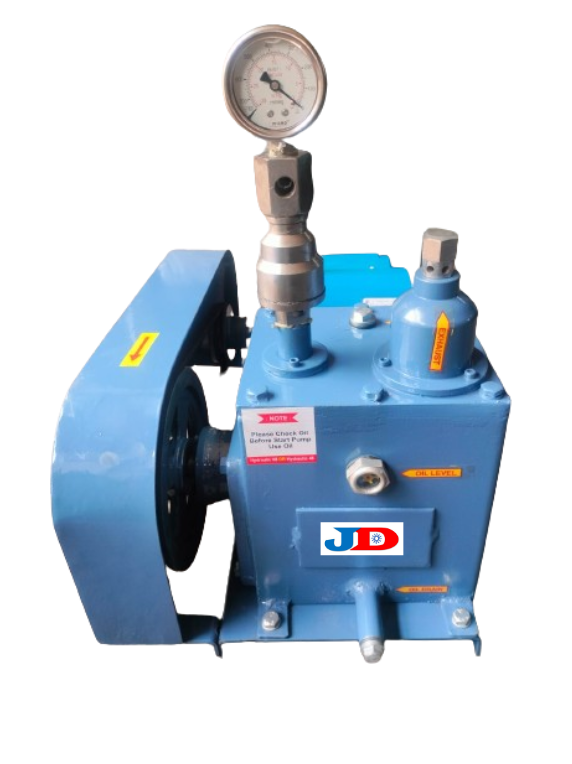

JDO 50 LPM OIL SEAL VACUUM PUMP
₹15,000
Belt Drive Rotary Vane Pumps JDO 50 LPM VACUUM PUMP, Max Flow Rate: 50 LPM, 0.5 HP, Capacity: 3 m3/hr, Voltage. 240 V, Air Cooled System.
- TYPE: JDO 50
- SPEED: 650 RPM
- OIL: 2 LTR
- SUCTION CAPACITY: 3 M3/HR, 50 L/min
- RECOMMENDED MOTOR: 0.25 HP
- Max. Vacuum: 0.05/0.005
Description
JDO 50 LPM Vacuum Pump – JD Vacuum Service
Unlock superior performance and efficiency with the 50 LPM Vacuum Pump from JD Vacuum Service. Designed specifically for industrial and commercial applications, this vacuum pump delivers a powerful 50 L/Min flow rate. This makes it the ideal choice for various processes that require dependable vacuum capability.
Powerful Performance
The Oil Seal Vacuum Pump is engineered to maintain optimal vacuum levels. It ensures that your operational requirements are met efficiently. This pump’s robust construction allows it to handle demanding tasks with ease.
Thus, it bolsters productivity and presents a perfect solution for both small and large-scale needs. Not only does it provide consistent airflow, but it also operates with minimal noise. This is a significant advantage in any work environment.
Durability and Reliability
When investing in a vacuum pump, durability and reliability are paramount. The 50 LPM Oil Seal High vacuum pump is built with premium materials that withstand the rigors of continuous use. Coupled with advanced engineering,
This pump is not only robust but also features ease of maintenance, ensuring long-term use without the hassle of frequent repairs. Trust in JD Vacuum Service to provide equipment that stands the test of time and enhances your operations.
In conclusion, with the 50 lpm Belt Drive Rotary Vane Pump, you receive top-tier performance, versatility, and reliability from JD Vacuum Service. Take your business operations to the next level with equipment designed to deliver efficiency and durability. Choose JD Vacuum Service to elevate your productivity today!
Vacuum Pumps are primarily used for air suppression to provide lower pressure for improving process parameters. We manufacture and supply vacuum pumps from 0.25 HP to 50 HP, from small laboratory diaphragm pumps of 15 LPM to large vacuum systems with flow capacities of 150000 LPM.
SINGLE STAGE
| Model No. | Max Vacuum | Approx Oil Filling Ltrs. | Free Air Displacement Lt./min, c.f.m, m3/hr | Drive Motor | ||||
|---|---|---|---|---|---|---|---|---|
| JDO-50 I | 0.05 mbar | 2 | 50 LPM | 1.8 C.F.M. | 3 M3/HR | 0.25 | ||
| JDO-100 I | 0.05 mbar | 2 | 100 LPM | 3.5 C.F.M. | 6 M3/HR | 0.25 | ||
| JDO-150 I | 0.05 mbar | 3 | 150 LPM | 5.3 C.F.M. | 9 M3/HR | 0.50 | ||
| JDO-300 I | 0.05 mbar | 5 | 300 LPM | 10.6 C.F.M. | 18 M3/HR | 1.00 | ||
| JDO-500 I | 0.05 mbar | 9 | 500 LPM | 17.6 C.F.M. | 30 M3/HR | 1.50 | ||
| JDO-750 I | 0.05 mbar | 10 | 750 LPM | 26.5 C.F.M. | 45 M3/HR | 2.00 | ||
| JDO-1000 I | 0.05 mbar | 10 | 1000 LPM | 35.3 C.F.M. | 60 M3/HR | 2.00 | ||
| JDO-1500 I | 0.05 mbar | 25 | 1500 LPM | 53.0 C.F.M. | 90 M3/HR | 3.00 | ||
| JDO-2000 I | 0.05 mbar | 25 | 2000 LPM | 70.6 C.F.M. | 120 M3/HR | 3.00 | ||
| JDO-3000 I | 0.05 mbar | 32 | 3000 LPM | 106.0 C.F.M. | 180 M3/HR | 5.00 | ||
| JDO-5000 I | 0.05 mbar | 36 | 5000 LPM | 178.5 C.F.M. | 300 M3/HR | 7.50 | ||
| JDO-7500 I | 0.05 mbar | 60 | 7500 LPM | 265 C.F.M. | 450 M3/HR | 10.00 | ||
| JDO-10000 I | 0.05 mbar | 66 | 10000 LPM | 353 C.F.M. | 600 M3/HR | 15.00 | ||
| JDO-15000 I | 0.05 mbar | 68 | 15000 LPM | 530 C.F.M. | 900 M3/HR | 22.00 | ||
| JDO-20000 I | 0.05 mbar | 70 | 20000 LPM | 710 C.F.M. | 1200 M3/HR | 25.00 | ||
DOUBLE STAGE
| Model No. | max vacuum | approx oil filling ltrs. | free air displacement Lt./min, c.f.m, m3/hr | drive motor | ||||
|---|---|---|---|---|---|---|---|---|
| JDO-50 II | 0.005 mbar | 2 | 50 LPM | 1.8 C.F.M. | 3 M3/HR | 0.25 | ||
| JDO-100 II | 0.005 mbar | 3 | 100 LPM | 3.5 C.F.M. | 6 M3/HR | 0.50 | ||
| JDO-150 II | 0.005 mbar | 4 | 150 LPM | 5.3 C.F.M. | 9 M3/HR | 1.00 | ||
| JDO-300 II | 0.005 mbar | 7 | 300 LPM | 10.6 C.F.M. | 18 M3/HR | 1.50 | ||
| JDO-500 II | 0.005 mbar | 12 | 500 LPM | 17.6 C.F.M. | 30 M3/HR | 2.00 | ||
| JDO-750 II | 0.005 mbar | 14 | 750 LPM | 26.5 C.F.M. | 45 M3/HR | 3.00 | ||
| JDO-1000 II | 0.005 mbar | 15 | 1000 LPM | 35.3 C.F.M. | 60 M3/HR | 3.00 | ||
| JDO-1500 II | 0.005 mbar | 30 | 1500 LPM | 53.0 C.F.M. | 90 M3/HR | 5.00 | ||
| JDO-2000 II | 0.005 mbar | 35 | 2000 LPM | 70.6 C.F.M. | 120 M3/HR | 5.00 | ||
| JDO-3000 II | 0.005 mbar | 40 | 3000 LPM | 106.0 C.F.M. | 180 M3/HR | 7.00 | ||
| JDO-5000 II | 0.005 mbar | 42 | 5000 LPM | 178.5 C.F.M. | 300 M3/HR | 10.00 | ||
| JDO-7500 II | 0.005 mbar | 65 | 7500 LPM | 265 C.F.M. | 450 M3/HR | 15.00 | ||
| JDO-10000 II | 0.005 mbar | 75 | 10000 LPM | 353 C.F.M. | 600 M3/HR | 20.00 | ||
| JDO-15000 II | 0.005 mbar | 80 | 15000 LPM | 530 C.F.M. | 900 M3/HR | 25.00 | ||
| JDO-20000 II | 0.005 mbar | 80 | 20000 LPM | 710 C.F.M. | 1200 M3/HR | 30.00 | ||
Field Application
- Laboratory Application of Chemical Plant.
- R&D Centre Vacuum Impregnation, Packing
- Vacuum Drying, Forming, Coating
- Lamp Industries, Leak Detection,
- Cryogenics, Distillation.Re-refining of oil
Capacity
- Max. Capacity: 50 LPM to 20,000 LPM (3.06 M3/hr.to 1204 M3/hr.)
- Max. Vacuum: Single Stage: 0.05 mm of Hg.
- Max. Vacuum: Two Stage: 0.005 mm of Hg.
- Recommend Motor: 0.25 HP to 25 HP, 1450 RPM Pump Speed: 500 RPM
Salient Features
- Robust Construction
- Compact, well-designed, and low-weight model
- Maximum Efficiency
- Trouble-free operation
- R&Easy and fast arrangement to change oil
- Thoroughly tested for seamless operation
- Easily handle dust-laden gases
- Built-in anti suck facility to prevent back of oil
