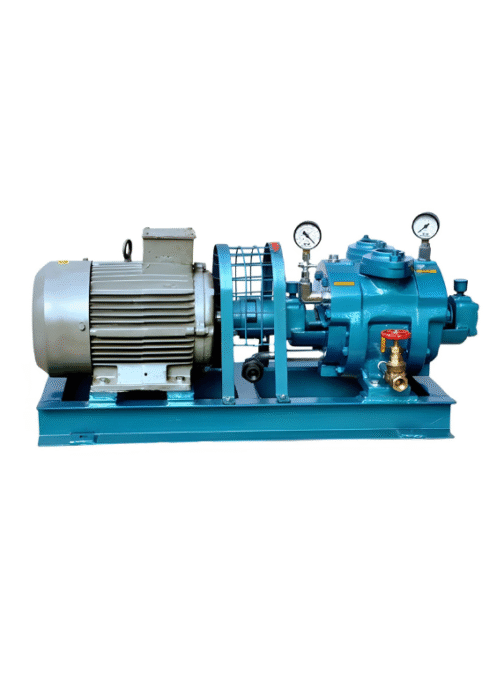

7.5 hp water ring vacuum pump
₹16,500
Boost your industrial applications with our 7.5 hp water ring vacuum pump. Durable, reliable, and designed for consistent suction power!
- Power Requirement: 7.5 HP
- Speed (RPM): 1440 / 2850 (depending on model)
- Suction Capacity: 120 – 160 m³/hr
- Vacuum Range: Up to 710 mmHg
- Water Consumption: 12 – 15 LPM (approx.)
- Construction Material: Cast Iron / Stainless Steel (as per application)
- Cooling: Water-cooled design for continuous duty
- Drive Type: Direct or Belt Drive options available
Description
7.5 HP Water Ring Vacuum Pump
The 7.5 HP Water Ring Vacuum Pump is a high-performance and durable solution designed for efficient vacuum generation in various industrial applications. Built with precision engineering, this 7.5 hp unit operates smoothly with low vibration and noise levels, ensuring long-lasting performance. Its water-ring mechanism provides consistent suction power, making it ideal for continuous operations. It’s perfect for anyone needing a reliable vacuum pump.
Key Features:
- Power: 7.5 HP
- Type: water ring vacuum pump
- Reliable and energy-efficient performance
- Sturdy construction for long service life
- Low noise and vibration operation
- Suitable for both single and multi-point suction
Applications:
- Chemical and pharmaceutical industries
- Food and beverage processing
- Textile and paper industries relying on efficient suction
- Plastic molding and packaging
- General industrial vacuum operations
Product Highlights
- Compact Design – Space-saving construction, easy to install.
- Stable Operation – Smooth running with minimal vibration.
- Quiet Working – Low noise levels make it suitable for indoor use.
- Corrosion Protection – Stainless steel option for aggressive gases or vapors.
- Continuous Operation – Built for round-the-clock industrial duty for those needing a vacuum unit with a 7.5 hp capacity.
Standard Supply Scope
- Base-mounted pump with coupling and guard
- Mechanical seal or gland packing (as required)
- Foundation bolts & accessories
- Instruction and operation manual
Optional Accessories of 7.5 HP Water Ring Vacuum Pump
- Separator tank
- Water recirculation system
- Non-return valves
- Customized motor mountings designed for the 7.5 hp vacuum pump.
| Type JDWV | Speed rpm | suction capacity | Recommended motor hp | Water consumption ltr/min. |
|---|---|---|---|---|
| 1 | 2850 | 50 | 3 | 7 |
| 2 | 2850 | 80 | 5 | 10 |
| 3 | 2850 | 120 | 7.5 | 14 |
| 4 | 1440 | 160 | 7.5 | 15 |
| 5 | 1440 | 220 | 10 | 20 |
| 6 | 1440 | 330 | 15 | 30 |
| 7 | 1440 | 440 | 20 | 40 |
| 8 | 980 | 720 | 30 | 60 |
| 9 | 980 | 845 | 35 | 80 |
| 10 | 980 | 1080 | 40 | 100 |
| 11 | 725 | 1500 | 65 | 150 |
| 12 | 725 | 2025 | 90 | 200 |
