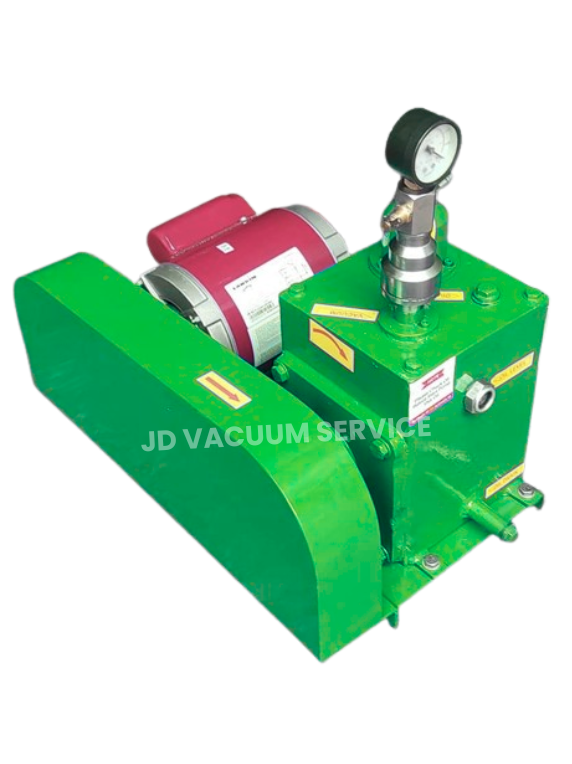

Belt Driven Rotary Vane High Vacuum Pumps
₹13,900
Experience unmatched performance with our Belt Driven Rotary Vane High Vacuum Pump, delivering up to 2000 LPM flow and 10⁻³ Torr vacuum levels. Engineered for industrial, laboratory, and chemical applications — offering quiet operation, low maintenance, and superior reliability.
- Pump Type: Belt Driven Rotary Vane, Oil-Sealed
- Vacuum Capacity: 50 to 2000 LPM (varies by model)
- Ultimate Vacuum: Up to 10⁻³ Torr
- Motor Power: 0.5 HP to 10 HP
- Cooling System: Air-Cooled / Water-Cooled
- Noise Level: < 70 dB
- Oil Capacity: 0.5 to 5 Litres (depending on model)
- Applications: Packaging, Laboratory, Industrial Processing, Chemical, HVAC
- Drive Type: Belt Driven (Adjustable Speed)
- Material: Cast Iron
Description
High-Performance Belt Driven Rotary Vane Vacuum Pumps
Experience unmatched efficiency and durability with our Belt Driven Rotary Vane High Vacuum Pumps. These are designed for precision applications requiring deep vacuum and long-term reliability. Engineered with a robust belt-driven mechanism, these pumps deliver stable performance, minimal vibration, and reduced operational noise. This makes them ideal for industries such as packaging, chemical processing, vacuum forming, and laboratory use.
Whether you need consistent suction or dependable high vacuum performance, this pump ensures optimal output with minimal maintenance.
Durable Design for Heavy-Duty Applications
Crafted from premium-grade materials and engineered with precision, this Rotary Vane High Vacuum Pump guarantees long service life. It ensures consistent performance even under continuous operation. The belt-driven system not only reduces wear and tear on internal components but also simplifies servicing and alignment.
Oil-sealed technology ensures better vacuum levels, smooth operation, and enhanced cooling efficiency. Perfect for rugged industrial environments, it’s built to handle high workloads without compromising performance or reliability.
Energy-Efficient & Low Maintenance Operation
Our Belt Driven Rotary Vane Vacuum Pumps are designed to deliver maximum vacuum performance with minimal energy consumption. The efficient vane system maintains a high vacuum while optimizing oil circulation for superior sealing and lubrication. Easy-to-access service ports and replaceable filters make routine maintenance quick and cost-effective.
This means less downtime, lower operating costs, and more consistent results. It is a true advantage for any business focused on productivity and performance.
Precision Engineering for Consistent Vacuum Performance
Each pump is meticulously tested to ensure precise vacuum levels and airtight sealing. The balanced rotor and vanes offer stable operation, while the integrated oil mist eliminator ensures a cleaner working environment. The belt-driven configuration enables flexible motor speed adjustments, allowing you to control vacuum intensity according to your specific application. From laboratory research to industrial manufacturing, this pump offers the accuracy and stability professionals rely on.
SINGLE STAGE
| Model No. | Max Vacuum | Approx Oil Filling Ltrs. | Free Air Displacement Lt./min, c.f.m, m3/hr | Drive Motor | ||||
|---|---|---|---|---|---|---|---|---|
| JDO-50 I | 0.05 mbar | 2 | 50 LPM | 1.8 C.F.M. | 3 M3/HR | 0.25 | ||
| JDO-100 I | 0.05 mbar | 2 | 100 LPM | 3.5 C.F.M. | 6 M3/HR | 0.25 | ||
| JDO-150 I | 0.05 mbar | 3 | 150 LPM | 5.3 C.F.M. | 9 M3/HR | 0.50 | ||
| JDO-300 I | 0.05 mbar | 5 | 300 LPM | 10.6 C.F.M. | 18 M3/HR | 1.00 | ||
| JDO-500 I | 0.05 mbar | 9 | 500 LPM | 17.6 C.F.M. | 30 M3/HR | 1.50 | ||
| JDO-750 I | 0.05 mbar | 10 | 750 LPM | 26.5 C.F.M. | 45 M3/HR | 2.00 | ||
| JDO-1000 I | 0.05 mbar | 10 | 1000 LPM | 35.3 C.F.M. | 60 M3/HR | 2.00 | ||
| JDO-1500 I | 0.05 mbar | 25 | 1500 LPM | 53.0 C.F.M. | 90 M3/HR | 3.00 | ||
| JDO-2000 I | 0.05 mbar | 25 | 2000 LPM | 70.6 C.F.M. | 120 M3/HR | 3.00 | ||
| JDO-3000 I | 0.05 mbar | 32 | 3000 LPM | 106.0 C.F.M. | 180 M3/HR | 5.00 | ||
| JDO-5000 I | 0.05 mbar | 36 | 5000 LPM | 178.5 C.F.M. | 300 M3/HR | 7.50 | ||
| JDO-7500 I | 0.05 mbar | 60 | 7500 LPM | 265 C.F.M. | 450 M3/HR | 10.00 | ||
| JDO-10000 I | 0.05 mbar | 66 | 10000 LPM | 353 C.F.M. | 600 M3/HR | 15.00 | ||
| JDO-15000 I | 0.05 mbar | 68 | 15000 LPM | 530 C.F.M. | 900 M3/HR | 22.00 | ||
| JDO-20000 I | 0.05 mbar | 70 | 20000 LPM | 710 C.F.M. | 1200 M3/HR | 25.00 | ||
DOUBLE STAGE
| Model No. | max vacuum | approx oil filling ltrs. | free air displacement Lt./min, c.f.m, m3/hr | drive motor | ||||
|---|---|---|---|---|---|---|---|---|
| JDO-50 II | 0.005 mbar | 2 | 50 LPM | 1.8 C.F.M. | 3 M3/HR | 0.25 | ||
| JDO-100 II | 0.005 mbar | 3 | 100 LPM | 3.5 C.F.M. | 6 M3/HR | 0.50 | ||
| JDO-150 II | 0.005 mbar | 4 | 150 LPM | 5.3 C.F.M. | 9 M3/HR | 1.00 | ||
| JDO-300 II | 0.005 mbar | 7 | 300 LPM | 10.6 C.F.M. | 18 M3/HR | 1.50 | ||
| JDO-500 II | 0.005 mbar | 12 | 500 LPM | 17.6 C.F.M. | 30 M3/HR | 2.00 | ||
| JDO-750 II | 0.005 mbar | 14 | 750 LPM | 26.5 C.F.M. | 45 M3/HR | 3.00 | ||
| JDO-1000 II | 0.005 mbar | 15 | 1000 LPM | 35.3 C.F.M. | 60 M3/HR | 3.00 | ||
| JDO-1500 II | 0.005 mbar | 30 | 1500 LPM | 53.0 C.F.M. | 90 M3/HR | 5.00 | ||
| JDO-2000 II | 0.005 mbar | 35 | 2000 LPM | 70.6 C.F.M. | 120 M3/HR | 5.00 | ||
| JDO-3000 II | 0.005 mbar | 40 | 3000 LPM | 106.0 C.F.M. | 180 M3/HR | 7.00 | ||
| JDO-5000 II | 0.005 mbar | 42 | 5000 LPM | 178.5 C.F.M. | 300 M3/HR | 10.00 | ||
| JDO-7500 II | 0.005 mbar | 65 | 7500 LPM | 265 C.F.M. | 450 M3/HR | 15.00 | ||
| JDO-10000 II | 0.005 mbar | 75 | 10000 LPM | 353 C.F.M. | 600 M3/HR | 20.00 | ||
| JDO-15000 II | 0.005 mbar | 80 | 15000 LPM | 530 C.F.M. | 900 M3/HR | 25.00 | ||
| JDO-20000 II | 0.005 mbar | 80 | 20000 LPM | 710 C.F.M. | 1200 M3/HR | 30.00 | ||
Field Application
- Laboratory Application of Chemical Plant.
- R&D Centre Vacuum Impregnation, Packing
- Vacuum Drying, Forming, Coating
- Lamp Industries, Leak Detection,
- Cryogenics, Distillation.Re-refining of oil
Capacity
- Max. Capacity: 50 LPM to 20,000 LPM (3.06 M3/hr.to 1204 M3/hr.)
- Max. Vacuum: Single Stage: 0.05 mm of Hg.
- Max. Vacuum: Two Stage: 0.005 mm of Hg.
- Recommend Motor: 0.25 HP to 25 HP, 1450 RPM Pump Speed: 500 RPM
Salient Features
- Robust Construction
- Compact, well-designed, and low-weight model
- Maximum Efficiency
- Trouble-free operation
- R&Easy and fast arrangement to change oil
- Thoroughly tested for seamless operation
- Easily handle dust-laden gases
- Built-in anti suck facility to prevent back of oil
