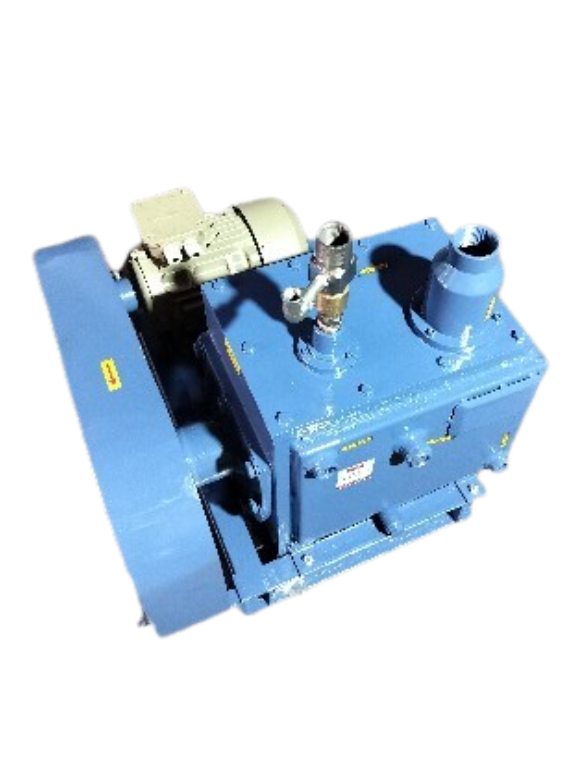

Oil Sealed Liquid Rotary High Vacuum Pumps
₹ 21,500
Achieve optimal vacuum conditions with our Oil Sealed Liquid Rotary High Vacuum Pumps. Engineered for exceptional performance and low maintenance!
- Type: Oil Sealed Liquid Rotary High Vacuum Pumps
- Brand: JD VACUUM SERVICE
- Max. Vacuum: 760 mm of Hg.
- Recommend Moto: 0.25 HP to 20 HP
- Max. Capacity: 3 to 1050 M3/hr
- Usage/Application: Industries
- Country of Origin: Made in India
Description
Elevate Your Vacuum System Efficiency
Introducing our advanced Oil Sealed Liquid Rotary High Vacuum Pumps from JD VACUM SERVICE. These pumps are designed to meet the demanding needs of various industrial applications. They deliver exceptional performance that ensures optimal vacuum conditions in your processes. Engineered with precision, they offer high pumping speeds and minimal maintenance requirements. This makes them an invaluable asset for any operation seeking reliable and consistent vacuum solutions.
Key Features and Benefits
Our Oil Sealed Rotary High Vacuum Pumps are equipped with an innovative design that enhances efficiency. It also prolongs the lifespan of the equipment. With features such as robust construction, low vibration operation, and noise reduction technology, these pumps provide a stable performance. They minimize disruptions. Their oil-sealed mechanism ensures minimal leakage, keeping your environment clean and safe while optimizing your production processes.
Versatile Applications
These high-vacuum pumps are suitable for a wide range of applications, including—but not limited to—laboratories, chemical processing, pharmaceuticals, and scientific research. Their versatility ensures that they can adapt to varied operational demands. Whether you need to evacuate a chamber or create a vacuum for evaporation processes, our pumps deliver the precision and reliability you require when using oil sealed liquid rotary pumps. Additionally, they support analytical instrumentation.
These vacuum pumps are used for
- Dehydration and filtration processes.
- Distillation
- Exhausting electronics tubes, GLS lamps, mercury vapour
- lamps and tubes using rotary pumps
- Vacuum sublimation
- Vacuum impregnation
- Thin film coating
- Freeze drying of foods.
In addition, the ease of installation and operation makes them user-friendly. This allows you to focus on your core business activities rather than complicated setup procedures. Trust JD VACUM SERVICE to provide the quality vacuum solutions that lead to success in your projects.
Invest in our Liquid Rotary High Vacuum Pumps sealed with oil today and experience a noticeable difference in your operational efficiency. Contact us to learn more about how our products can be tailored to meet your specific needs.
SINGLE STAGE
| Model No. | Max Vacuum | Approx Oil Filling Ltrs. | Free Air Displacement Lt./min, c.f.m, m3/hr | Drive Motor | ||||
|---|---|---|---|---|---|---|---|---|
| JDO-50 I | 0.05 mbar | 2 | 50 LPM | 1.8 C.F.M. | 3 M3/HR | 0.25 | ||
| JDO-100 I | 0.05 mbar | 2 | 100 LPM | 3.5 C.F.M. | 6 M3/HR | 0.25 | ||
| JDO-150 I | 0.05 mbar | 3 | 150 LPM | 5.3 C.F.M. | 9 M3/HR | 0.50 | ||
| JDO-300 I | 0.05 mbar | 5 | 300 LPM | 10.6 C.F.M. | 18 M3/HR | 1.00 | ||
| JDO-500 I | 0.05 mbar | 9 | 500 LPM | 17.6 C.F.M. | 30 M3/HR | 1.50 | ||
| JDO-750 I | 0.05 mbar | 10 | 750 LPM | 26.5 C.F.M. | 45 M3/HR | 2.00 | ||
| JDO-1000 I | 0.05 mbar | 10 | 1000 LPM | 35.3 C.F.M. | 60 M3/HR | 2.00 | ||
| JDO-1500 I | 0.05 mbar | 25 | 1500 LPM | 53.0 C.F.M. | 90 M3/HR | 3.00 | ||
| JDO-2000 I | 0.05 mbar | 25 | 2000 LPM | 70.6 C.F.M. | 120 M3/HR | 3.00 | ||
| JDO-3000 I | 0.05 mbar | 32 | 3000 LPM | 106.0 C.F.M. | 180 M3/HR | 5.00 | ||
| JDO-5000 I | 0.05 mbar | 36 | 5000 LPM | 178.5 C.F.M. | 300 M3/HR | 7.50 | ||
| JDO-7500 I | 0.05 mbar | 60 | 7500 LPM | 265 C.F.M. | 450 M3/HR | 10.00 | ||
| JDO-10000 I | 0.05 mbar | 66 | 10000 LPM | 353 C.F.M. | 600 M3/HR | 15.00 | ||
| JDO-15000 I | 0.05 mbar | 68 | 15000 LPM | 530 C.F.M. | 900 M3/HR | 22.00 | ||
| JDO-20000 I | 0.05 mbar | 70 | 20000 LPM | 710 C.F.M. | 1200 M3/HR | 25.00 | ||
DOUBLE STAGE
| Model No. | max vacuum | approx oil filling ltrs. | free air displacement Lt./min, c.f.m, m3/hr | drive motor | ||||
|---|---|---|---|---|---|---|---|---|
| JDO-50 II | 0.005 mbar | 2 | 50 LPM | 1.8 C.F.M. | 3 M3/HR | 0.25 | ||
| JDO-100 II | 0.005 mbar | 3 | 100 LPM | 3.5 C.F.M. | 6 M3/HR | 0.50 | ||
| JDO-150 II | 0.005 mbar | 4 | 150 LPM | 5.3 C.F.M. | 9 M3/HR | 1.00 | ||
| JDO-300 II | 0.005 mbar | 7 | 300 LPM | 10.6 C.F.M. | 18 M3/HR | 1.50 | ||
| JDO-500 II | 0.005 mbar | 12 | 500 LPM | 17.6 C.F.M. | 30 M3/HR | 2.00 | ||
| JDO-750 II | 0.005 mbar | 14 | 750 LPM | 26.5 C.F.M. | 45 M3/HR | 3.00 | ||
| JDO-1000 II | 0.005 mbar | 15 | 1000 LPM | 35.3 C.F.M. | 60 M3/HR | 3.00 | ||
| JDO-1500 II | 0.005 mbar | 30 | 1500 LPM | 53.0 C.F.M. | 90 M3/HR | 5.00 | ||
| JDO-2000 II | 0.005 mbar | 35 | 2000 LPM | 70.6 C.F.M. | 120 M3/HR | 5.00 | ||
| JDO-3000 II | 0.005 mbar | 40 | 3000 LPM | 106.0 C.F.M. | 180 M3/HR | 7.00 | ||
| JDO-5000 II | 0.005 mbar | 42 | 5000 LPM | 178.5 C.F.M. | 300 M3/HR | 10.00 | ||
| JDO-7500 II | 0.005 mbar | 65 | 7500 LPM | 265 C.F.M. | 450 M3/HR | 15.00 | ||
| JDO-10000 II | 0.005 mbar | 75 | 10000 LPM | 353 C.F.M. | 600 M3/HR | 20.00 | ||
| JDO-15000 II | 0.005 mbar | 80 | 15000 LPM | 530 C.F.M. | 900 M3/HR | 25.00 | ||
| JDO-20000 II | 0.005 mbar | 80 | 20000 LPM | 710 C.F.M. | 1200 M3/HR | 30.00 | ||
