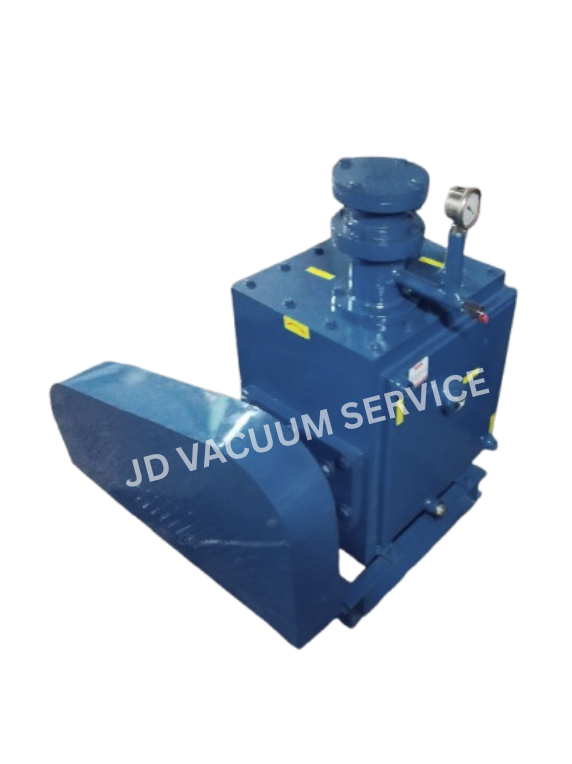

SV 1000 LPM Oil Seal High Vacuum Pump
₹16,700
Upgrade to the SV1000 Oil Seal High Vacuum Pump and experience powerful 1000 LPM performance, smooth operation, and long-lasting durability. Perfect for industrial applications requiring high efficiency, deep vacuum levels, and reliable continuous-duty performance.
- Model: SV1000
- Pump Type: Double Stage / Oil Seal High Vacuum Pump
- Ultimate Vacuum: Up to 0.005 Torr (or as per manufacturer standard)
- Free Air Displacement: 1000 LPM (approx.)
- Motor Power: 3 HP / 2.2 kW (optional variations available)
- Cooling System: Forced air cooling for sustained long-duration operation
- Noise Level: Low-noise optimized (below 70 dB depending on application)
- Duty Cycle: 100% continuous duty compatible
- Construction: cast iron body
- Lubrication: Efficient oil circulation system for heat control and longer life
Description
SV 1000 LPM Oil Seal High Vacuum Pump – Power, Precision & Performance You Can Trust
The SV 1000 LPM Oil Seal High Vacuum Pump delivers exceptional performance, ensuring consistent deep vacuum levels across all industrial applications. Moreover, its advanced oil-seal design prevents leakage, thereby guaranteeing stable suction even during continuous operation. Consequently, users experience higher productivity and improved process reliability.
Built for Durability and Long Service Life
In addition to its powerful suction capabilities, the SV1000 features a rugged construction that withstands heavy-duty workloads with ease. Furthermore, its reinforced internal components minimize wear, ensuring the pump remains efficient for years. As a result, maintenance requirements stay low, which ultimately saves time and operational costs.
Smooth, Energy-Efficient & Silent Operation
Not only does the SV1000 deliver strong vacuum performance, but it also operates with reduced noise and vibration. As a result, it creates a more comfortable working environment. Additionally, its energy-optimized motor lowers electricity consumption, which directly contributes to long-term savings. Therefore, this pump is ideal for industries seeking both power and efficiency.
User-Friendly, Reliable & Easy to Maintain
Because the pump is designed with technicians in mind, maintenance tasks become significantly easier. For instance, the transparent oil level sight glass and easy-access ports allow quick servicing without downtime. Moreover, the pump’s compact design simplifies installation, making it suitable for both new and existing setups.
Versatile Applications Across Multiple Industries
Whether used in packaging lines, laboratory systems, or manufacturing plants, the SV1000 performs with unmatched reliability. Additionally, optional custom features—such as advanced filters or high-grade vacuum oil—ensure it can adapt to various specialized environments. Ultimately, this versatility makes the SV1000 an indispensable solution for modern industries.
SINGLE STAGE
| Model No. | Max Vacuum | Approx Oil Filling Ltrs. | Free Air Displacement Lt./min, c.f.m, m3/hr | Drive Motor | ||||
|---|---|---|---|---|---|---|---|---|
| JDO-50 I | 0.05 mbar | 2 | 50 LPM | 1.8 C.F.M. | 3 M3/HR | 0.25 | ||
| JDO-100 I | 0.05 mbar | 2 | 100 LPM | 3.5 C.F.M. | 6 M3/HR | 0.25 | ||
| JDO-150 I | 0.05 mbar | 3 | 150 LPM | 5.3 C.F.M. | 9 M3/HR | 0.50 | ||
| JDO-300 I | 0.05 mbar | 5 | 300 LPM | 10.6 C.F.M. | 18 M3/HR | 1.00 | ||

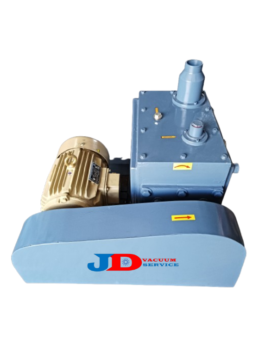

| JDO-500 I | 0.05 mbar | 9 | 500 LPM | 17.6 C.F.M. | 30 M3/HR | 1.50 | ||
| JDO-750 I | 0.05 mbar | 10 | 750 LPM | 26.5 C.F.M. | 45 M3/HR | 2.00 | ||
| JDO-1000 I | 0.05 mbar | 10 | 1000 LPM | 35.3 C.F.M. | 60 M3/HR | 2.00 | ||
| JDO-1500 I | 0.05 mbar | 25 | 1500 LPM | 53.0 C.F.M. | 90 M3/HR | 3.00 | ||
| JDO-2000 I | 0.05 mbar | 25 | 2000 LPM | 70.6 C.F.M. | 120 M3/HR | 3.00 | ||
| JDO-3000 I | 0.05 mbar | 32 | 3000 LPM | 106.0 C.F.M. | 180 M3/HR | 5.00 | ||
| JDO-5000 I | 0.05 mbar | 36 | 5000 LPM | 178.5 C.F.M. | 300 M3/HR | 7.50 | ||
| JDO-7500 I | 0.05 mbar | 60 | 7500 LPM | 265 C.F.M. | 450 M3/HR | 10.00 | ||
| JDO-10000 I | 0.05 mbar | 66 | 10000 LPM | 353 C.F.M. | 600 M3/HR | 15.00 | ||
| JDO-15000 I | 0.05 mbar | 68 | 15000 LPM | 530 C.F.M. | 900 M3/HR | 22.00 | ||
| JDO-20000 I | 0.05 mbar | 70 | 20000 LPM | 710 C.F.M. | 1200 M3/HR | 25.00 | ||
DOUBLE STAGE
| Model No. | max vacuum | approx oil filling ltrs. | free air displacement Lt./min, c.f.m, m3/hr | drive motor | ||||
|---|---|---|---|---|---|---|---|---|
| JDO-50 II | 0.005 mbar | 2 | 50 LPM | 1.8 C.F.M. | 3 M3/HR | 0.25 | ||
| JDO-100 II | 0.005 mbar | 3 | 100 LPM | 3.5 C.F.M. | 6 M3/HR | 0.50 | ||
| JDO-150 II | 0.005 mbar | 4 | 150 LPM | 5.3 C.F.M. | 9 M3/HR | 1.00 | ||
| JDO-300 II | 0.005 mbar | 7 | 300 LPM | 10.6 C.F.M. | 18 M3/HR | 1.50 | ||
| JDO-500 II | 0.005 mbar | 12 | 500 LPM | 17.6 C.F.M. | 30 M3/HR | 2.00 | ||
| JDO-750 II | 0.005 mbar | 14 | 750 LPM | 26.5 C.F.M. | 45 M3/HR | 3.00 | ||
| JDO-1000 II | 0.005 mbar | 15 | 1000 LPM | 35.3 C.F.M. | 60 M3/HR | 3.00 | ||
| JDO-1500 II | 0.005 mbar | 30 | 1500 LPM | 53.0 C.F.M. | 90 M3/HR | 5.00 | ||
| JDO-2000 II | 0.005 mbar | 35 | 2000 LPM | 70.6 C.F.M. | 120 M3/HR | 5.00 | ||
| JDO-3000 II | 0.005 mbar | 40 | 3000 LPM | 106.0 C.F.M. | 180 M3/HR | 7.00 | ||
| JDO-5000 II | 0.005 mbar | 42 | 5000 LPM | 178.5 C.F.M. | 300 M3/HR | 10.00 | ||
| JDO-7500 II | 0.005 mbar | 65 | 7500 LPM | 265 C.F.M. | 450 M3/HR | 15.00 | ||
| JDO-10000 II | 0.005 mbar | 75 | 10000 LPM | 353 C.F.M. | 600 M3/HR | 20.00 | ||
| JDO-15000 II | 0.005 mbar | 80 | 15000 LPM | 530 C.F.M. | 900 M3/HR | 25.00 | ||
| JDO-20000 II | 0.005 mbar | 80 | 20000 LPM | 710 C.F.M. | 1200 M3/HR | 30.00 | ||
Field Application
- Laboratory Application of Chemical Plant.
- R&D Centre Vacuum Impregnation, Packing
- Vacuum Drying, Forming, Coating
- Lamp Industries, Leak Detection,
- Cryogenics, Distillation.Re-refining of oil
Capacity
- Max. Capacity: 50 LPM to 20,000 LPM (3.06 M3/hr.to 1204 M3/hr.)
- Max. Vacuum: Single Stage: 0.05 mm of Hg.
- Max. Vacuum: Two Stage: 0.005 mm of Hg.
- Recommend Motor: 0.25 HP to 25 HP, 1450 RPM Pump Speed: 500 RPM
Salient Features
- Robust Construction
- Compact, well-designed, and low-weight model
- Maximum Efficiency
- Trouble-free operation
- R&Easy and fast arrangement to change oil
- Thoroughly tested for seamless operation
- Easily handle dust-laden gases
- Built-in anti suck facility to prevent back of oil
