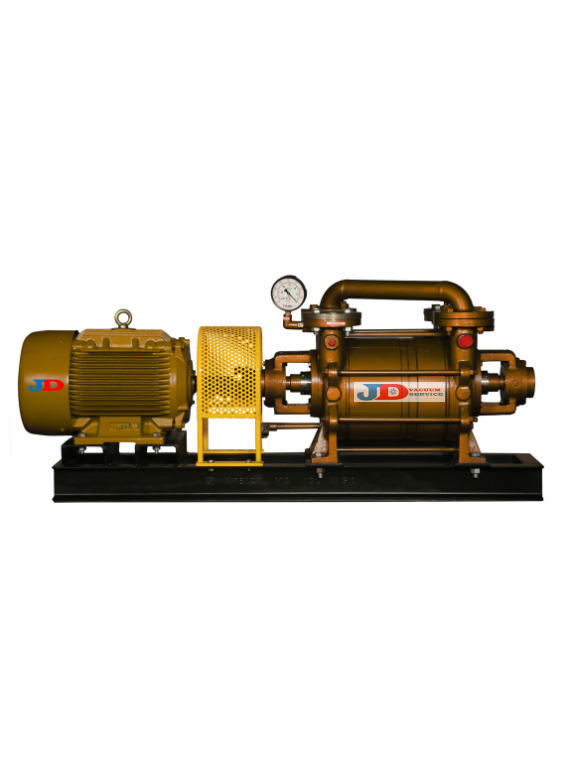

Two Stage Water Ring Vacuum Pump
Number of Stages
Double Stage
Brand
JD Vacuum Service
Usage/Application
Industrial
Phase
Three Phase
Type
Two Stage Water Ring Vacuum Pump
Material
Cast Iron
Automation Grade
Automatic
M.O.C
CI, PSS 304, CSS 304, PSS 316, CSS 316
Sealing Water Temp
30 Degree C
Description
Two Stage Water Ring Vacuum Pump
The two stage water ring vacuum pump is designed to provide exceptional performance and reliability for various industrial applications. This innovative pump operates using a water ring mechanism, ensuring efficient operation and low maintenance requirements.
Features and Benefits
Our two stage water ring vacuum pumps features impressive design elements that enhance its efficiency. With a robust construction, the pump offers excellent durability, making it ideal for continuous usage. Additionally, its two-stage design allows for deeper vacuum levels, optimizing performance in demanding environments.
Service from JD Vacuum
At JD Vacuum Service, we pride ourselves on delivering outstanding customer support for your vacuum pump needs. Our team of experts is ready to assist with installation, maintenance, and any inquiries you may have about your two stage water ring vacuum pumps. Experience the quality and service that sets us apart.
Features
- Two-Stage Configuration: Achieves lower ultimate pressures compared to single-stage pumps, enhancing vacuum efficiency.
- High Efficiency: Engineered for optimal performance, significantly reducing energy consumption.
- Durable Design: Made from corrosion-resistant materials to withstand harsh conditions and prolong service life.
- Low Maintenance: Designed for easy servicing, minimizing downtime and maintenance costs.
- Versatile Use: Effective in various applications, from chemical processes to food packaging.
Specifications
- Pump Type: Two Stage Liquid Ring Vacuum Pump
- Maximum Vacuum: 720 mm/hg
- Capacity Range: 50 – 250 m³/h
- Motor Power: 5 HP TO 20 HP
- Operating Liquid: Water or compatible liquid
- Material of Construction: Stainless steel (S304/S316) or Cast iron
- Weight: 350 kg
- Dimensions: 1200 mm (L) x 600 mm (W) x 800 mm (H)
- Noise Level: 75 dB(A) at full operation
- Operating Temperature Range: -10°C to +70°C
- Inlet Connection: Flanged, DN100
- Outlet Connection: Flanged, DN80
- Seal Type: Mechanical seal for enhanced durability
Applications
- Chemical manufacturing
- Pharmaceutical production
- Food and beverage processing
- Vacuum packaging
- Environmental management and waste treatment
- Distillation and evaporation processes.
